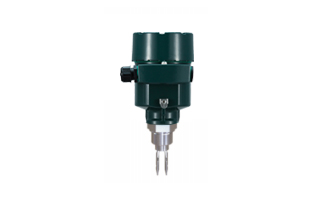

PWAVE211
Features: free from environmental impacts such as dielectric constant, vapor, eddy current
Application: liquid point measurement
Process connection: thread and flange
Process temperature: Standard type: (-50 - 150)℃
High temperature type: (-50 - 250)℃
Process pressure: (-0.1 - 6.4) MPa
Frequency range: about 1200Hz
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; 220V AC/5A
Explosion-proof level: Exd IIC T6
Protection grade: IP 67
