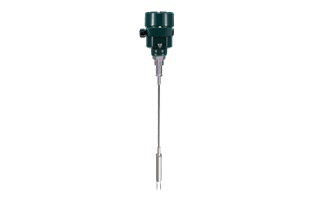

PWAVE213
Characteristic:
free from the influence of dielectric constant, steam and eddy current.
Use:
liquid point measurement.
Measurement range :(500 ~ 4000) mm
Process connection: screw thread, flange
Process temperature: (to 50 ~ 150 ℃)
Process pressure :(-0.1 ~ 1.6) MPa
Frequency range: about 1200Hz
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; AC 220 v / 5 a
Explosion-proof grade: Exd IIC T6
Protection class: IP 67
